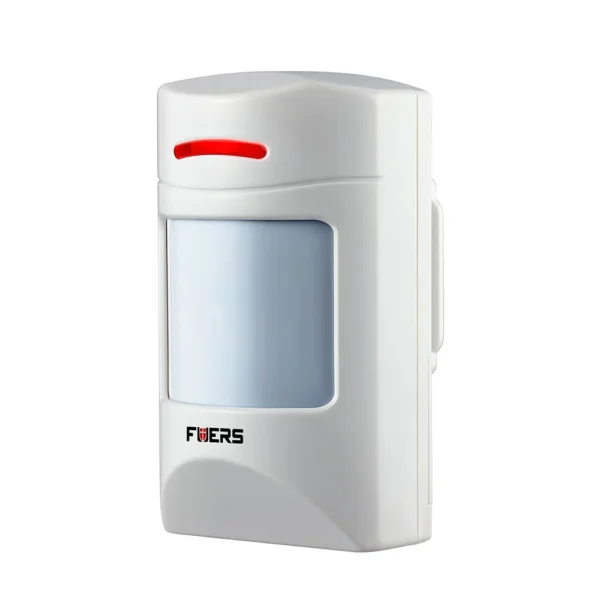

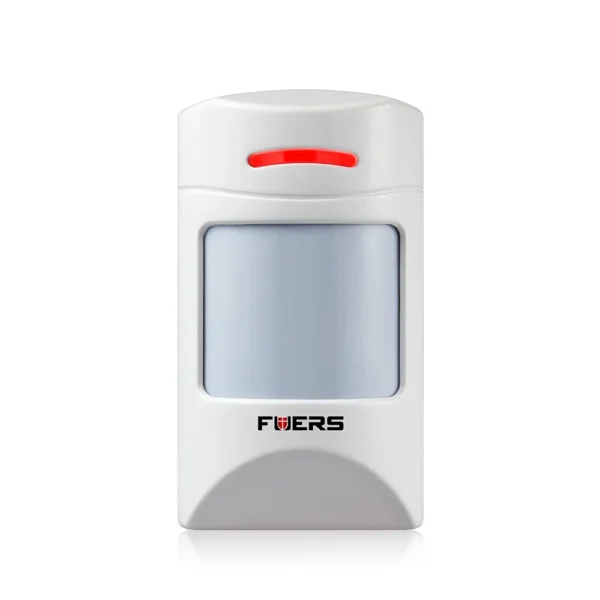

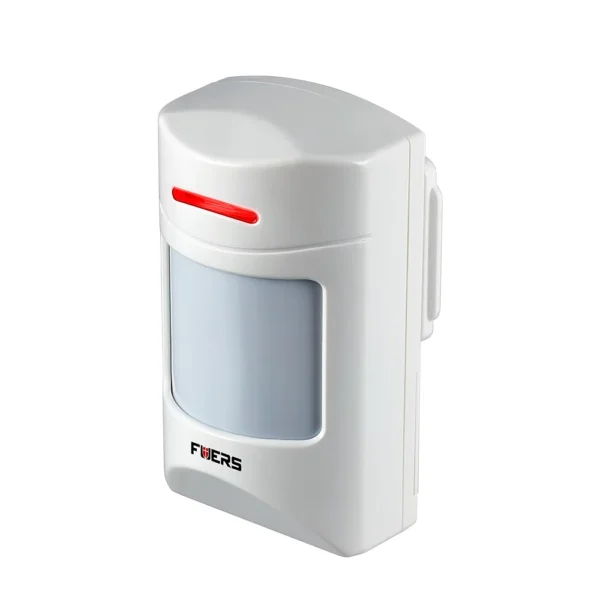

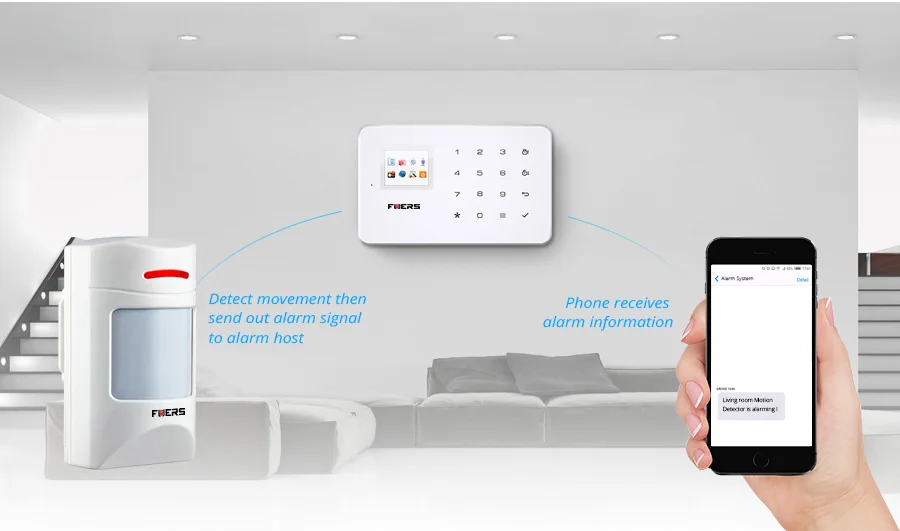

Fuers Motion Detector Wireless Intelligent Pet Immune Motion Sensor PIR Detector Pet-friendly For W181 W204 Home Security Alarm
Product Testing
Turning on power and LED indicator will be flashed for 1s, the detector comes into state of self-check, it takes about 30s, after that it is in the state of normal work. Conner should walk parallel with the wall installed detector in the testing area. LED lighting means the detector is in the state of alarm.

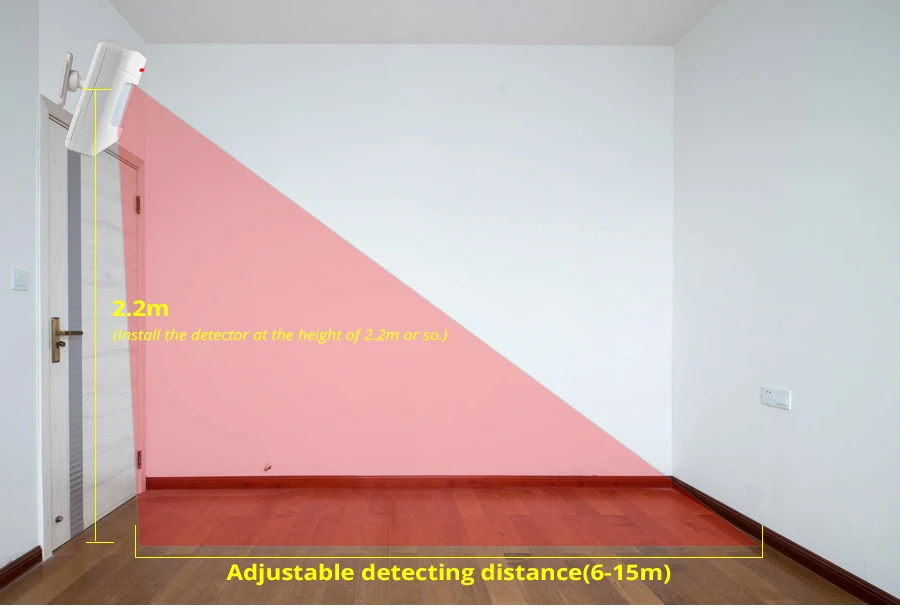

install the detector at the height of 2.2m or so.
Make sure there is no inducement for pet to pass by, like stair and etc.
Notice:
the function of pet-immunity will not work, if the distance of detector and pet is less than 1.8m.
Parameters

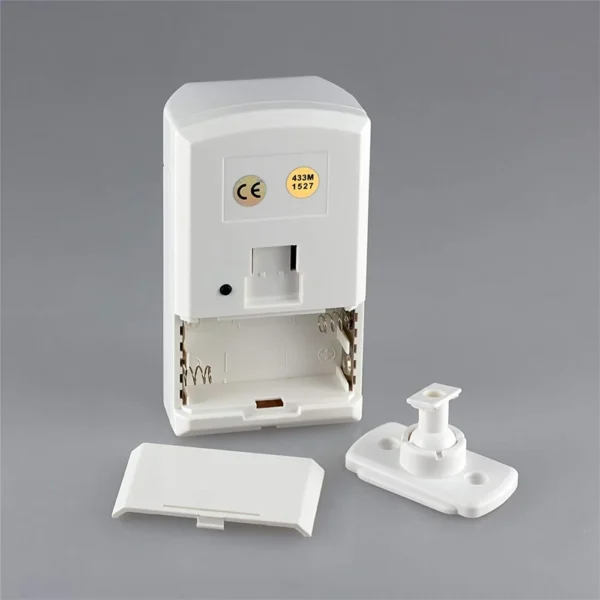

Working voltage:DC 3V(2*AA by battery is not included)
Static current≤15uA
Alarm current≤10mA
Emission distance:30-80(open area)
Installation height:2.2m
Detection distance:6-15m
Detection range:90-110 degree
Encoding method:2262
Sensor:dual element infrared sensor
Operating temperature:-10 degree ~+50 degree
Emission frequency: 433MHz

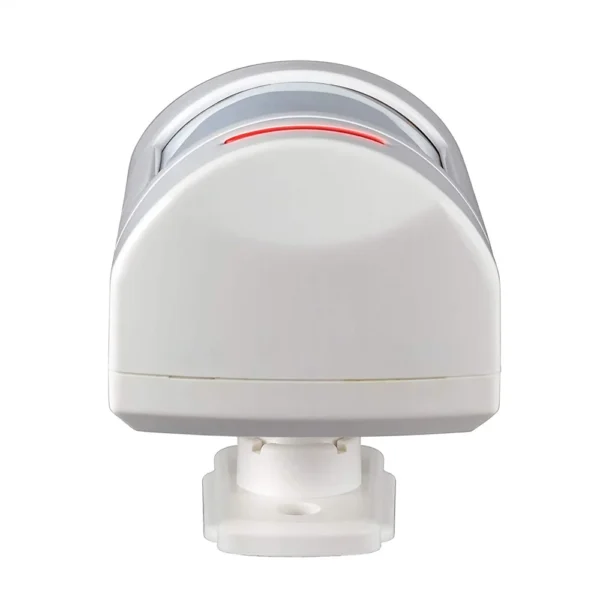

Installation method:wall mounting
Lower battery indicator:yellow LED
Alarm indicator:red LED
